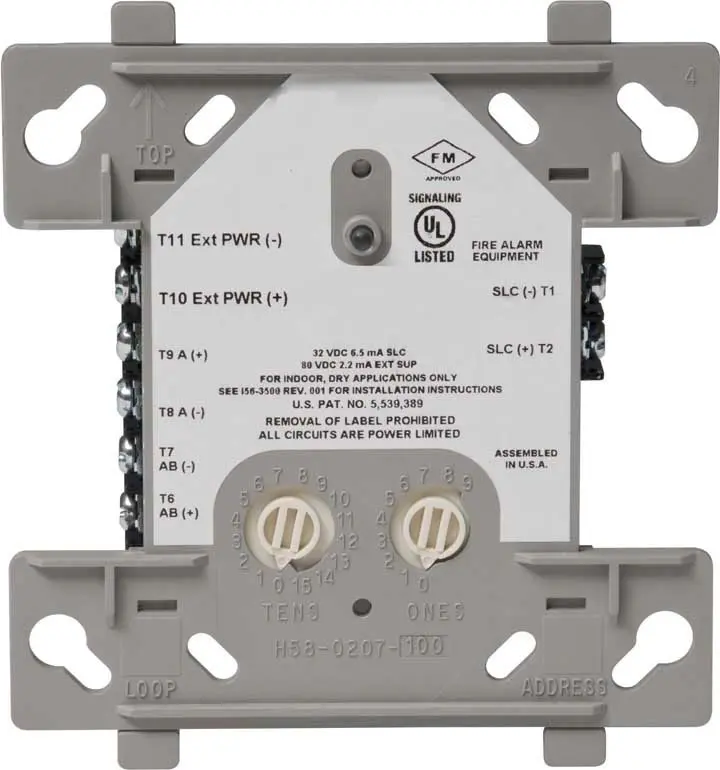

FZM-1CH

Operating Voltage: 15 to 32 VDC
Maximum Current: 5.1 mA (when LED is continuously illuminated)
Standby Current: 270 µA (when LED is flashing)
End of Life (EOL) Resistance: 3.9K Ohms
Circuit Support: Supports both Class B (Style B) and Class A (Style D)
Operating Temperature: 0°C to 49°C (32°F to 120°F)
Humidity: 10% to 93% (non-condensing)
Location Identification: Adjustable via Rotary Switches (01-159 for FlashScan)
1 year warranty
